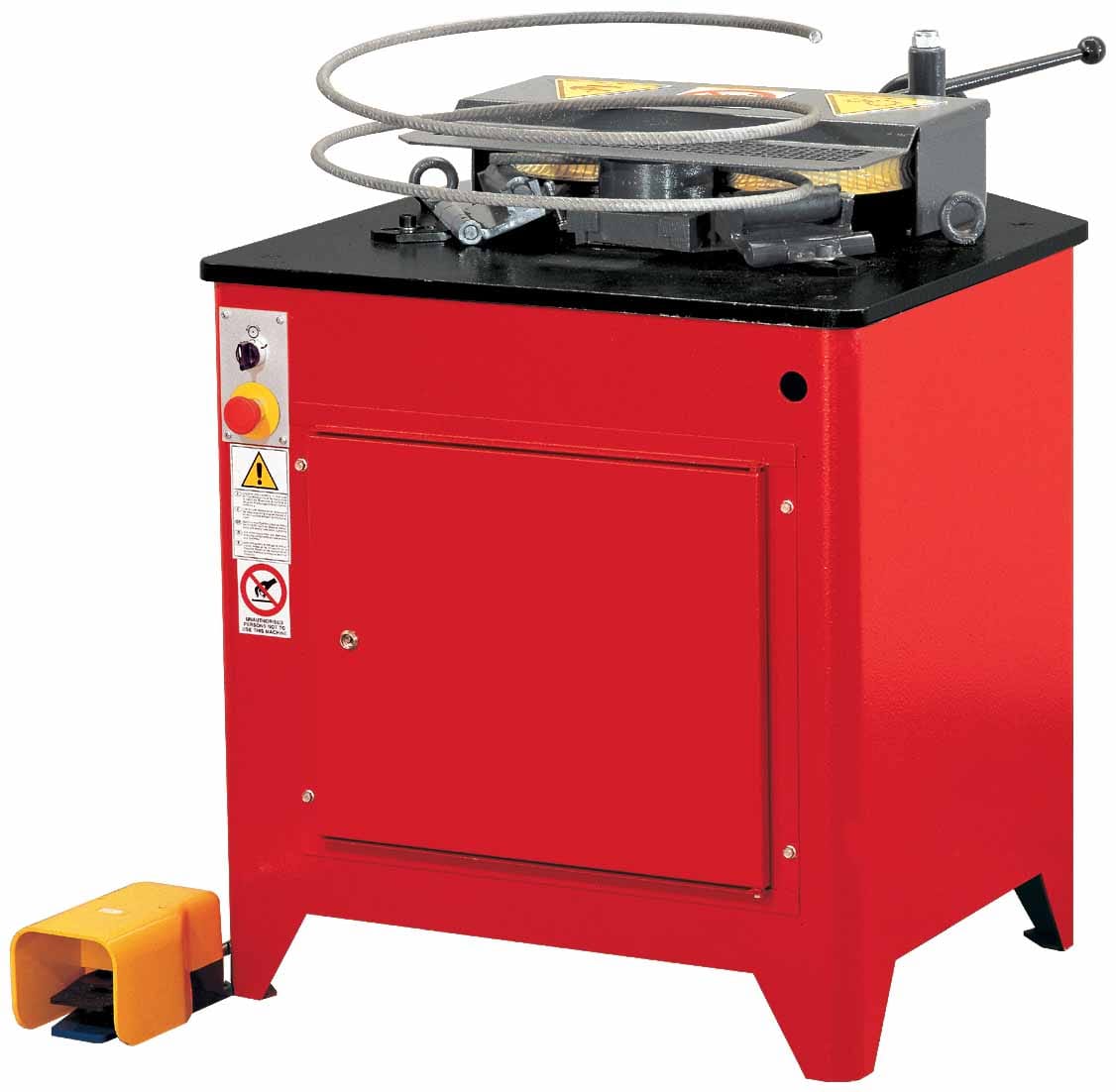

RING FORMING AND SPIRALLING MACHINE Mod. CALANDRA 132

Machine for the production of rings and spirals from steel reinforcing bars. Equipped with disconnecting device for the processing of bars only partially curved. Fitted with two fixed pulling rollers and one movable to adjust the curving radius.

TECHNICAL CHARACTERISTICS

• Maximum diameter admitted : 32 mm for bars having tensile strength up to 650 N / mm².
• Pulling speed : 14,5 m / min. and 29 m / min.
• Installed power:2,5 KW
• Voltage: 400 V – 50 Hz ( others upon request ).
• Foot control with selector for bidirectional pulling.
• Total weight : 350 Kg.
• Dimensions : 800 x 950 x (h)960mm

STANDARD ACCESSORIES

• No. 1 set of tools
• No. 1 greasing pump
• No. 1 foot control
