CS 40 SX

AUTOMATIC SHAPING MACHINERY

BARS ∅10 – ∅40 mm (#3 – #11)

• Automatic shaping.

• Suitable for both series production and single processing (single wire up to 50 mm).

• Automatic complex bends.

• Large radius pins.

• Suitable for a variety of production requirements with multiple configurations and layouts.

• Perfect integration with LTM, CUT LINE, FLEXIPLUS, SUPERFLEX and straightening systems METRONIC.

• Ideal for large stirrups and shapes with a small number of bends.

• It allows bidirectional bending on the same bar.

• Reduces set-up times and scrap with patented devices.

• Advanced control for automation.

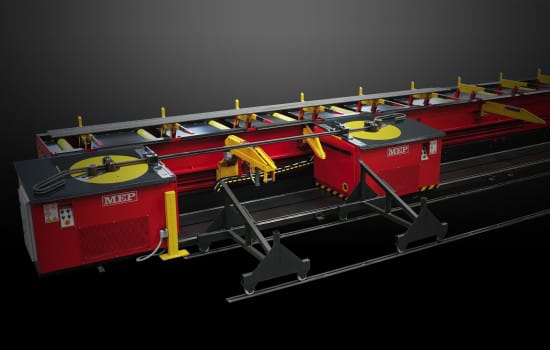

CS 440SX / CS 440 2M

AUTOMATIC SHAPING MACHINERY

BARS ∅10 – ∅40 mm (#3 – #11)

• Automatic shaping.

• Suitable for both series production and processing of individual elements, with “2M” versions for maximum productivity thanks to the simultaneous operation of 2 bending heads.

• It performs clockwise and counterclockwise bends up to ± 180° on both sides of the shaped part, reducing costs and increasing flexibility.

• Suitable for medium and large stirrups with one or more bends on both sides, thanks to a complete range of accessories.

• Can be integrated with other cutting systems and automatic straighteners, with dynamic workflow management by advanced automation (optional).

• Different machine configurations are available: with two movable bending units (“2M”) or with one fixed and one movable bending unit (SX).

• It allows bidirectional bending on the same bar fully automatically.

• CS 440 and CS 460 make mouldings with multiple clockwise and anticlockwise bends up to ± 180° on both ends.

• The CS 440 2M and CS 460 2M guarantee maximum precision through the use of a central clamp that locks and supports the bars during machining.
