SHEAR LINES

LTM 500 and LTM 300 are robust and reliable cutting systems designed for the production of cut-to-length bars with the highest precision and flexibility.

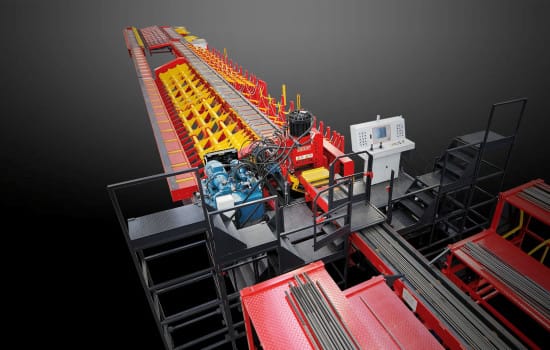

LTM 300

SHEAR LINE

• Automatic systems for management of “cut to length” bars (optional)

• Tying, tagging and automatic collection

• Guillotine shears

• Blade width 380 mm (14,96’)

• Cut capacity 1 bar ∅60 mm

• Automatic bar loader (patented)

• Configuration with systems Rotoflex and AOR (Active Optimization Racks)

• Simulation optimized work sequence

• Bundle storage racks from 1 to 3 levels with capacity 2.5 t – 5 t each (optional)

• Chain feeder for bar transfer and buffering (optional)

• Shape forming units of the P, CS or Multiradius series (optional)

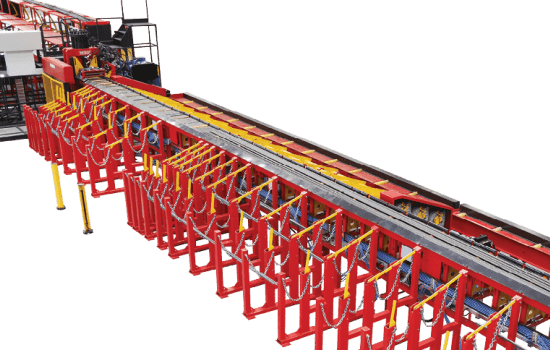

LTM 500

SHEAR LINE

AUTOMATIC BAR LOAD
From ∅10 – ∅20 mm / #4 – #6
From ∅22 – ∅40 mm / #6 – #11

CUTTING BARS
From ∅12 – ∅60 mm / #4 – #18

• Automatic systems for management of “cut to length” bars (optional)

• Tying, tagging and automatic collection

• Guillotine shears

• Blade width 530 mm (20,87’)

• Cut capacity 3 bar ∅50 mm

• Automatic bar loader (patented)

• Configuration with systems Rotoflex and AOR (Active Optimization Racks)

• Simulation optimized work sequence

• Bundle storage racks from 1 to 3 levels with capacity 2.5 t – 5 t each (optional)

• Chain feeder for bar transfer and buffering (optional)

• Shape forming units of the P, CS or Multiradius series (optional)
