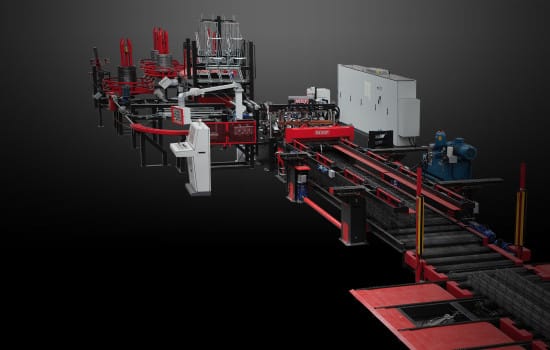

STEPWELD series plants produce high-quality welded mesh, characterized by single or double panels (even overlapping), composed of a minimum number of 2 to 8 longitudinal wires whose diameter range may be between 4 and 20 mm.

The cross wire feeds may have a diameter range from 4 to 12 mm and as in the case of the longitudinal wire feeds they can be in the form of of wire coil or pre-cut bars.

Key features:

• High productivity: STEPWELD plants guarantee rapid and efficient production, with minimized set-up times.

• Reliability and robustness: Built with high-quality materials, STEPWELD plants are designed to last over time and withstand intensive use.

• Versatility: STEPWELD models are available in various configurations to meet specific production needs.

• Superior quality: The combined action of a series of exclusive devices guarantees a finished product of the highest quality.

• Ease of use: STEPWELD plants are easy to configure and use, thanks to an intuitive control system.

• Safety: All STEPWELD plants comply with the latest safety regulations.

Available models:

• STEPWELD M: For the use of longitudinal and transverse wires made from pre-cut bars.

• STEPWELD H: For the use of bars for the longitudinal wires and wire mesh for the transverse wires.

• STEPWELD S: For the production of single or double panels with high levels of productivity.

• STEPWELD 4S: For the simultaneous production of two identical and overlapping mesh panels, with even higher levels of productivity.

Additional options:

• Automatic tying system: Eliminates the need to tie the mesh bundles manually, maximising plant productivity.

• Automatic packaging machine: for stacking multiple bundles of tied mesh, increasing the storage area and optimising lifting and evacuation operations.
